Magnetic Components

Light Switches

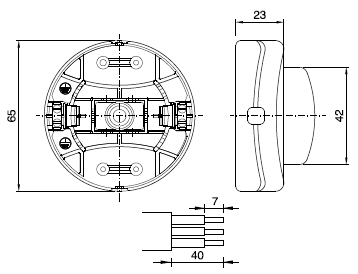

Trough cord single-pole foot switch with earth terminal

Rated voltage: 250V
Resistive current: 2A
Lamp load: 1A
Terminals: screw type
Cord grip: by a plastic plate and two screws
Use: for round cables H03VV-F 3x0.75 mm2
Packaging: 250 pieces
Code: 022570 - black
022569 - white
022571 - gold
PEDALIERA ART. 350VP/T NERO
Approval: Approval


Click on image to enlarge

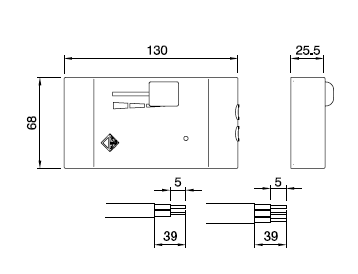

Dimmer (table or floor) for incandescent lamps
(from 60W to 300W) with led for tracing in the dark

Rated voltage: 230V
Dimensions: 65x130x25 mm
Use: on class I and II applications
Packaging: 50 pieces
Code: 032356 - black
032355 - white
032357 - gold
DIMMER ART. 1011 NE
Approval: Approval


Click on image to enlarge

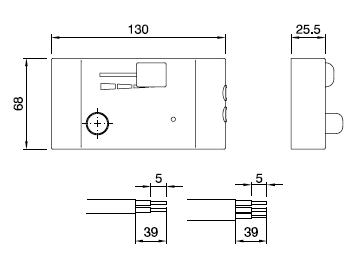

Dimmer (table or floor) for incandescent lamps
(from 60W to 300W) with led for tracing in the dark and switch

Rated voltage: 230V
Dimensions: 65x130x25 mm
Use: on class I and II applications
Packaging: 50 pieces
Code: 032361 - black
032360 - white
032362 - gold
DIMMER ART. 1011S NE
Approval: Approval


Click on image to enlarge

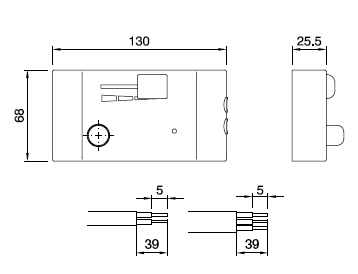

Dimmer (table or floor) for incandescent lamps
(from 60W to 300W) with led for tracing in the dark
Also available version 1011S/2L with a switch to supply another extra lamp
(up to 200W max.)

Rated voltage: 230V
Dimensions: 65x130x25 mm
Use: on class I and II applications
Packaging: 50 pieces
Code: 032364 - black
032363 - white
032365 - gold
DIMMER ART. 1011S/2L
Approval: Approval


Click on image to enlarge
