Magnetic Components

Cord-sets

Cord-sets available with plug only or with switch only Cord-sets Range with plugs: European, U.S.A., British and French/Schuko

Tolerances: L1 and L2 N 1 m ( 1 cm); L1 and L2 > 1 m ( 1%)

Double-pole cord-set with flat cable (L) 2x0.75 H03VVH2-F

Switch: single-pole (I) 2(1) 1A, 250V, 1E4
Plug: European (E) 2.5A, 250V
Finishes: free end with brass ferules
Colours and lengths on request
L1/L2 packaging: 250 pieces
100/50 Code: 002472 - black
002471 - white
002474 - gold

L1/L2 packaging: 200 pieces
120/80 Code: 002480 black
002479 - white
002482 - gold

L1/L2 packaging: 250 pieces
80/40 Code: 002464 - black
002463 - white

LIE/275/100/50/NE/STD/ CABLAGGIO


Click on image to enlarge

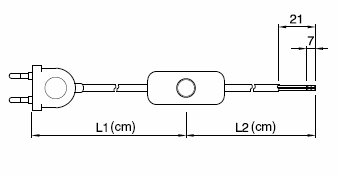

Double-pole cord-set with flat cable (L) 2x0.75 H03VVH2-F

Switch: single-pole (F) 2(1) 1A, 250V, 1E4
Plug: European (M) 2.5A, 250V
Finishes: free end with electrowelded terminals or with brass ferules.
Colours and lengths on request
L1/L2 packaging: 250 pieces
100/50 Code: 020092 - black
020081 - white
020082 - gold

L1/L2 packaging: 250 pieces
120/80 Code: 020085 - black
020073 - white
020074 - gold

L1/L2 packaging: 300 pieces
80/40 Code: 021606 - black
020161 - white
020096 - gold

LFM/275/100/50/NE/STD/ CABLAGGIO


Click on image to enlarge

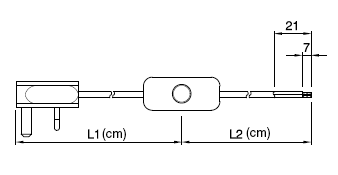

Double-pole cord-set with flat cable (L) 2x0.75 H03VVH2-F

Switch: single-pole (I) 2(1) 1A, 250V
Plug: British (GA) 3A, 250V
Finishes: free end with brass ferules.
Colours and lengths on request
L1/L2 packaging: 150 pieces
100/50 Code: 016179 - black
015593 - white
017489 - gold

L1/L2 packaging: 150 pieces
120/80 Code: 015778 - black
016997 - white
019560 - gold

LIGA/275/100/50/NE/STD/ CABLAGGIO


Click on image to enlarge

Double-pole cord-set with flat cable (L) 2x0.75 H03VVH2-F

Switch: foot, single-pole (Q) 2 1A, 250V, 1E4
Plug: European (E) 2.5A, 250V
Finishes: free end with brass ferules.
Colours and lengths on request
L1/L2 packaging: 100 pieces
100/200 Code: 020757 - black
020756 - white
020758 - gold

L1/L2 packaging: 100 pieces
150/250 Code: 020760 - black
020759 - white
020761 - gold

LQE/275/100/200/NE/STD/ CABLAGGIO


Click on image to enlarge
