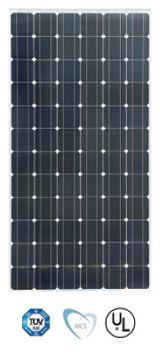

Mono Crystalline Module
72x5" / 180-195W

Mechanical Data
Cells Mono-crystalline 125x125 (mm)
Number of Cells 72 (6x12)
Typical Application 24V DC
Maximum Voltage 1000V DC
Size (mm) 1580(L) x 808(W) x 35/50(H)
Weight (kg) 15 / 16.5
Front Glass 3.2mm thick
Electric classification Application Class A
Type of output terminal Junction box (IP65)
Cable 900mm wire ( Φ 4 mm2)
Connection Locking type plug
Mono Crystalline
Operating Conditions
Parameter Values
Operating temperature -40 °C to + 85 °C
Mechanical load 2400Pa
Solar Panels Specifications
Temperature Characteristics
Nomial Operating Cell Temperarue (NOCT) 45 °C ± 2°C
Temperature Coefficent of Isc + 0.05% / °C
Temperature Coefficent of Voc -0.35% / °C
Temperature Coefficent of Pmax -0.45% / °C

More information on Mono Crystalline Module 72x5" / 180-195W

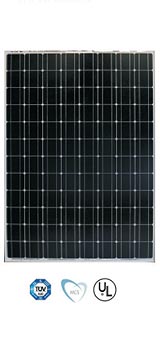

Mono Crystalline Module
96x5" / 220-260W

Mechanical Data
Cells Mono-crystalline 125x125 (mm)
Number of Cells 96 (8x12)
Typical Application 24V DC
Maximum Voltage 1000V DC
Size (mm) 1590(L) x 1064(W) x 45/50(H)
Weight (kg) 20 / 22
Front Glass 3.2mm thick
Electric classification Application Class A
Type of output terminal Junction box (IP65)
Cable 900mm wire ( Φ 4 mm2)
Connection Locking type plug
Mono Crystalline Large
Operating Conditions
Parameter Values
Operating temperature -40 °C to + 85 °C
Mechanical load 2400Pa
Solar Panels Specifications
Temperature Characteristics
Nomial Operating Cell Temperarue (NOCT) 45 °C ± 2°C
Temperature Coefficent of Isc + 0.05% / °C
Temperature Coefficent of Voc -0.35% / °C
Temperature Coefficent of Pmax -0.45% / °C

More information on Mono Crystalline Module 96x5" / 220-260W

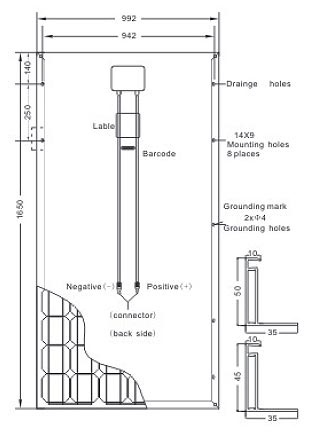

Mono Crystalline Module
60x6" / 220-255W
Mechanical Data
Cells Mono-crystalline 156x156 (mm)
Number of Cells 60 (6x10)
Typical Application 24V DC
Maximum Voltage 1000V DC
Size (mm) 1650(L) x 992(W) x 45/50(H)
Weight (kg) 19 / 20
Front Glass 3.2mm thick
Electric classification Application Class A
Type of output terminal Junction box (IP65)
Cable 900mm wire ( Φ 4 mm2)
Connection Locking type plug
Mono Crystalline Meduim
Operating Conditions
Parameter Values
Operating temperature -40 °C to + 85 °C
Mechanical load 2400Pa
Solar Panels Specifications
Temperature Characteristics
Nomial Operating Cell Temperarue (NOCT) 45 °C ± 2°C
Temperature Coefficent of Isc + 0.05% / °C
Temperature Coefficent of Voc -0.35% / °C
Temperature Coefficent of Pmax -0.45% / °C

More information on Mono Crystalline Module 60x6" / 220-255W


Mono Crystalline Module

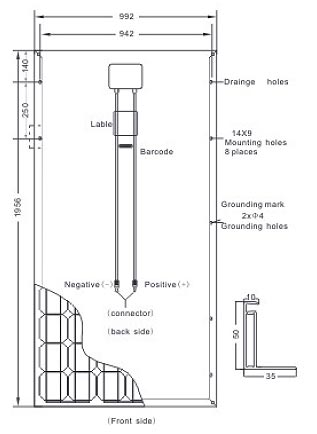

72x6" / 260-305W
Mechanical Data
Cells Mono-crystalline 156x156 (mm)
Number of Cells 72 (6x12)
Typical Application 24V DC
Maximum Voltage 1000V DC
Size (mm) 1956(L) x 992(W) x 50(H)
Weight (kg) 23
Front Glass 3.2mm thick
Electric classification Application Class A
Type of output terminal Junction box (IP65)
Cable 900mm wire ( Φ 4 mm2)
Connection Locking type plug
Mono Crystalline
Operating Conditions
Parameter Values
Operating temperature -40 °C to + 85 °C
Mechanical load 2400Pa
Solar Panels Specifications
Temperature Characteristics
Nomial Operating Cell Temperarue (NOCT) 45 °C ± 2°C
Temperature Coefficent of Isc + 0.05% / °C
Temperature Coefficent of Voc -0.35% / °C
Temperature Coefficent of Pmax -0.45% / °C

More information on Mono Crystalline Module 72x6" / 260-305W

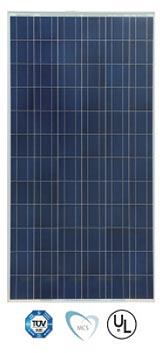

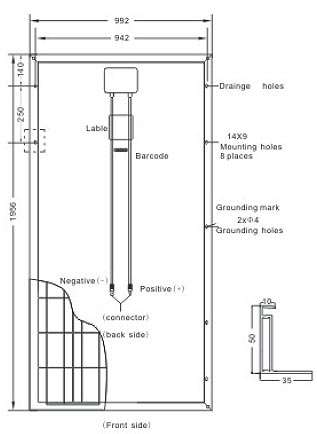

Poly Crystalline Module
60x6" / 200-245W
Mechanical Data
Cells Poly-crystalline 156x156 (mm)
Number of Cells 60 (6x10)
Typical Application 24V DC
Maximum Voltage 1000V DC
Size (mm) 1650(L) x 992(W) x 50(H)
Weight (kg) 19 / 20
Front Glass 3.2mm thick
Electric classification Application Class A
Type of output terminal Junction box (IP65)
Cable 900mm wire ( Φ 4 mm2)
Connection Locking type plug
Poly Crystalline
Operating Conditions
Parameter Values
Operating temperature -40 °C to + 85 °C
Mechanical load 2400Pa
Solar Panels Specifications
Temperature Characteristics
Nomial Operating Cell Temperarue (NOCT) 45 °C ± 2°C
Temperature Coefficent of Isc + 0.05% / °C
Temperature Coefficent of Voc -0.35% / °C
Temperature Coefficent of Pmax -0.45% / °C

More information on Poly Crystalline Module 60x6" / 200-245W

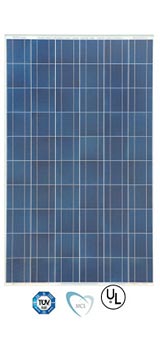

Poly Crystalline Module
72x6" / 260-300W
Mechanical Data
Cells Poly-crystalline 156x156 (mm)
Number of Cells 72 (6x12)
Typical Application 24V DC
Maximum Voltage 1000V DC
Size (mm) 1956(L) x 992(W) x 50(H)
Weight (kg) 23
Front Glass 3.2mm thick
Electric classification Application Class A
Type of output terminal Junction box (IP65)
Cable 900mm wire ( Φ 4 mm2)
Connection Locking type plug
Poly Crystalline
Operating Conditions
Parameter Values
Operating temperature -40 °C to + 85 °C
Mechanical load 2400Pa
Solar Panels Specifications
Temperature Characteristics
Nomial Operating Cell Temperarue (NOCT) 45 °C ± 2°C
Temperature Coefficent of Isc + 0.05% / °C
Temperature Coefficent of Voc -0.35% / °C
Temperature Coefficent of Pmax -0.45% / °C

More information on Poly Crystalline Module 72x6" / 260-300W
