Magnetic Components

Assorted Transparent Lighting Products

E14 One-piece Accessories | Transparent Cord Sets


Cable Finish

Rated current: 2A
Rated voltage: 250V
Rated temperature: T135C
Material: transparent thermoplastic
Approval: Approval




E14 one-piece thermoplastic transparent lampholder and accessories (T 135C)

E14 One-piece lampholder
Terminals: spring type for rigid or flexible cables from 0.5 1.5 mm2
Outer shell: plain
Connection: through holes for self-threading screws 3 mm or with snap-on domes
Packaging: 100 pieces
Code: 021450 - transparent
50/T135/TR/M/PDE/E14


Click on image to enlarge


E14 One-piece lampholder
Terminals: spring type for rigid or flexible cables from 0.5 1.5 mm2
Outer shell: threaded
Connection: through holes for self-threading screws 3 mm or with snap-on domes
Packaging: 100 pieces
Code: 021833 - transparent
60/T135/TR/M/PDE/E14


Click on image to enlarge


E14 One-piece lampholder
Terminals: spring type for rigid or flexible cables from 0.5 1.5 mm2
Outer shell: partly threaded with flange
Connection: through holes for self-threading screws 3 mm or with snap-on domes
Packaging: 100 pieces
Code: 021333 - transparent
62/T135/TR/M/PDE/E14


Click on image to enlarge



Dome for E14 one-piece lampholder
Connection: with metal nipple (M10x1) and stem locking screw
Packaging: 100 pieces
Code: 022510 - transparent
CAPPELLO E14 ART.105 NIP TR


Click on image to enlarge

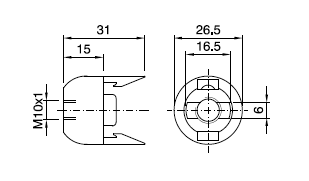

Dome for E14 one-piece lampholder
Connection: with threaded fitting (M10x1) with retainer
Locking device notch: external
Packaging: 100 pieces
Code: 026448 - transparent
CAPPELLO E14 ART.105 ASF SL TR


Click on image to enlarge


Dome for E14 one-piece lampholder
Connection: with threaded fitting (M10x1) with retainer and stem locking screw
Locking device notch: external
Packaging: 100 pieces
Code: 021344 - transparent
CAPPELLO E14 ART.105 ASFV TR


Click on image to enlarge


Dome for E14 one-piece lampholder
Connection: with cord grips/insulators (code 023963)
Packaging: 100 pieces
Code: 023568 - transparent
CAPPELLO E14 ART. 105 SC TR


Click on image to enlarge



Shade ring for E14 lampholder
Height: 9,5 mm
Packaging: 100 pieces
Code: 021353 - transparent
GHIERA E14 ART.141 TR


Click on image to enlarge



Cord grip/insulator for E14 one-piece lampholder
Use: class II applications with transparent flat cables 2x0.75 mm2, to used with Item 105 SC or in combination with metal stem have 6.56.8 mm
Packaging: 500 pieces
Code: 023963 - transparent
SDI14 SERRACAVO ISOLATORE NA


Click on image to enlarge


Cord Sets

Double-pole cord-set with flat cable (L) 2x0.75 mm2 transparent Switch: single-pole (F) 2(1) 1A, 250V
Plug: European (M) 2.5A, 250V
Finishes: free end with brass ferules.
L1/L2 packaging: 100 pieces
120/80 Code: 020492 - transparent
100/50 Code: 020289 - transparent
LFM/275/120/80/TR/STD/ CABLAGGIO


Click on image to enlarge


Double-pole cord-set with flat cable (L) 2x0.75 mm2 transparent Switch: single-pole foot switch (Q1P) 2 1A, 250V. 1E4
Plug: European (E) 2.5A, 250V
Finishes: free end with brass ferules.
L1/L2 packaging: 50 pieces
100/200 Code: 024783 - transparent
150/250 Code: 023297 - transparent
LQ1PE/275/100/200/TR/
STD/CABLAGGIO



Click on image to enlarge


Double-pole cord-set with flat cable (L) 2x0,75 mm trasparent
Switch: variator (D11), 230V,60W-300W
Plug: European (E) 2.5A, 250V
Finishes: free end with brass ferules.
Colours and lenghts on request
L1/L2 packaging: 50 pieces
150/250 Code: 032486 - transparent
LD11E/275/150/250/TR/
STD/CABLAGGIO



Click on image to enlarge

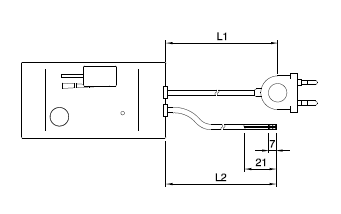

Double-pole cord-set with flat cable (L) 2x0,75 mm trasparent
Switch: variator and switch (D11S), 230V, 60W-300W
Plug: European (E) 2.5A, 250V
Finishes: free end with brass ferules.
Colours and lenghts on request
L1/L2
LD11SE/275/L1/L2/TR/
STD/CABLAGGIO



Click on image to enlarge
